Description

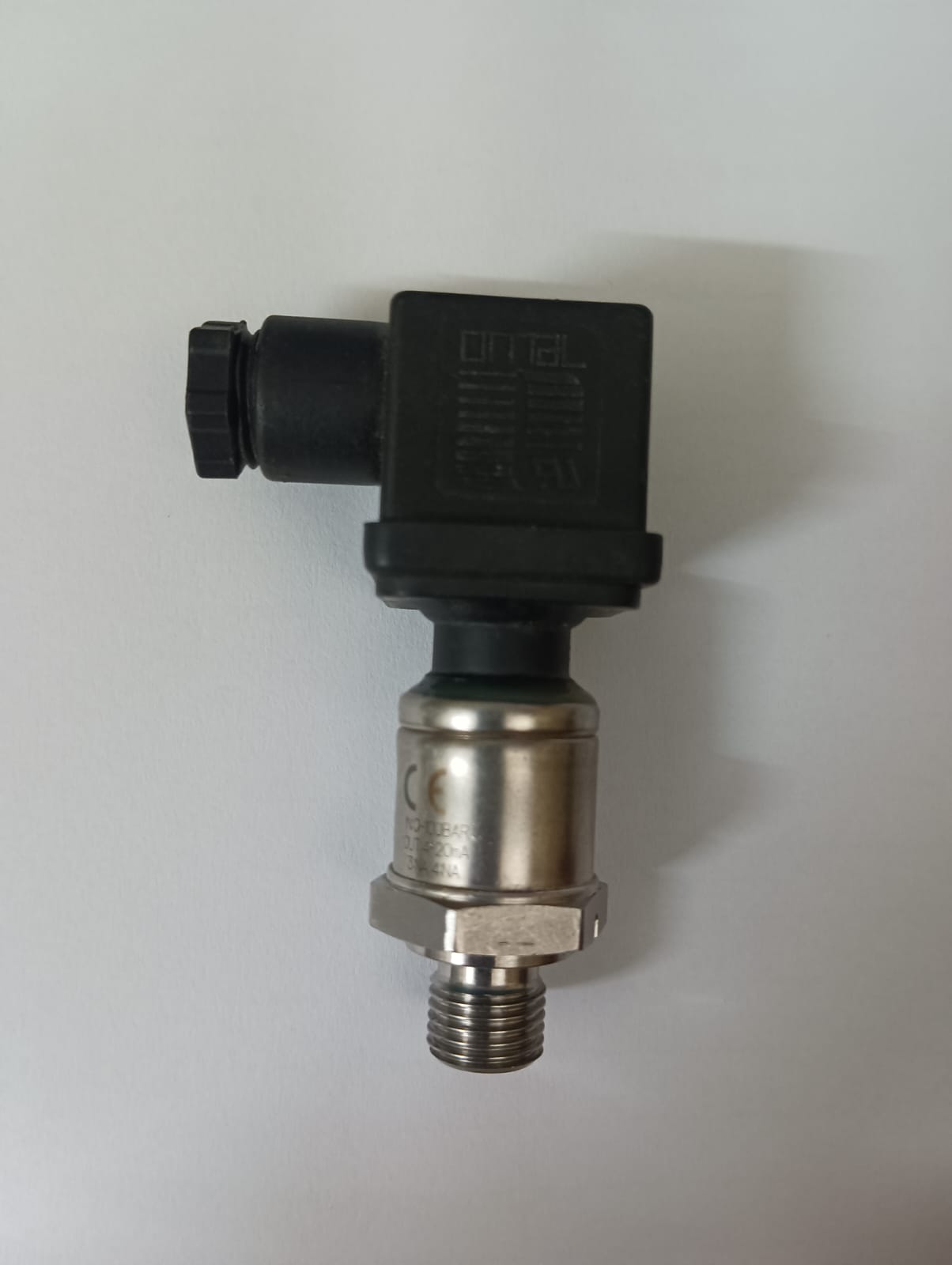

Pressure Transmitter is used for measuring the relative (gauge) pressure in liquids and gases. The Pressure Transmitter that we offer incorporates a thick-film strain gauge as a measuring device. The pressure sensor has an aluminium-oxide (Al2O3) ceramic base material. With the help of the Pressure Transmitter, pressure is converted into an electrical signal. It is protection with terminal box IP65 to EN 60 529 (diameter of connecting cable 5 mm min., 7 mm max.) with connecting cable or circular connector M 12 x 1IP67 to EN 60 529. Additional Features : Housing stainless steel, Mat. Ref. 1.4305 EPDM Electrical connection terminal box to DIN 43 650, style A, conductor cross-section up to 1.5 mm2 or attached 4-core PVC cable, length 2 m, other lengths on request or 4-pole circular connector, M12x1 Nominal position : any Weight : 100 g

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
MAGNEHELIC GAUGE

DWYER MAGNEHELIC GAUGE

The Dwyer Magnehelic Gauge is the industry-standard, analog differential pressure gauge used to measure low pressures of air and non-corrosive gases (0.25 in w.c. to 30 psi). It features a friction-free, magnet-actuated helix movement for high accuracy and durability, commonly used in HVAC systems, cleanrooms, and filter monitoring.

6814772a5d263414004dd4a4 Card 2

product image
RTD SENSOR

RTD SENSOR

A Resistance Temperature Detector (RTD) is a, reliable, and highly accurate temperature sensor that measures temperature by correlating the electrical resistance of a metal element (usually platinum) with temperature. As temperature rises, the electrical resistance increases linearly, providing stable, repeatable readings for industrial, medical, and aerospace applications.

6814772a5d263414004dd4a4 Card 2

product image
VACCUM GAUGE

VACCUM GAUGE

A vacuum gauge is a specialized, ruggedized pressure instrument designed to accurately measure sub-atmospheric or negative pressure levels within a vessel, chamber, or piping system. Ranging from mechanical Bourdon types to digital sensors, these gauges are essential for monitoring vacuum levels in industrial, laboratory, and HVAC applications.
