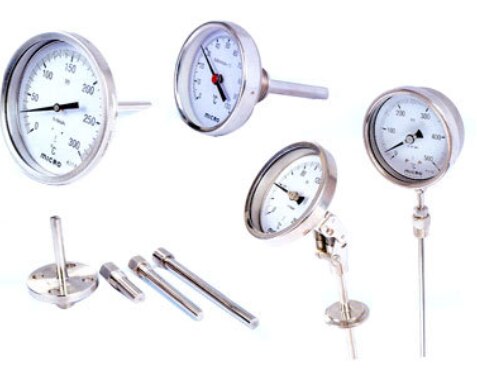

Bimetal Temperature Gauge

We offer excellent quality Bimetal Temperature Gauge that is an economical, rugged and reliable temperature measuring instrument. Bimetal Temperature Gauge that we offer is properly heated and coated with viscous silicon to minimize pointer oscillation and improve temperature transmission. Thermowell is designed to protect the temperature gauge from various corrosive media, viscous material or velocity and abrasives. The use of thermowell also permits instrument interchange or calibration check without disturbing or shutting down the process stream. Bimetal Temperature Gauge is applied in domestic and industrial heating system, hot water boiler, power plant, food and beverage in industries, pharmaceutical industry, etc.

Features :

MOC of thermowell : SS 304, SS 316, Hastelloy "c"

Type : Straight, stepped, tapered and flanged

Dual scale C and F available on request

EVery angle mounting available on request

Extra stem length on request

TC connection on request
